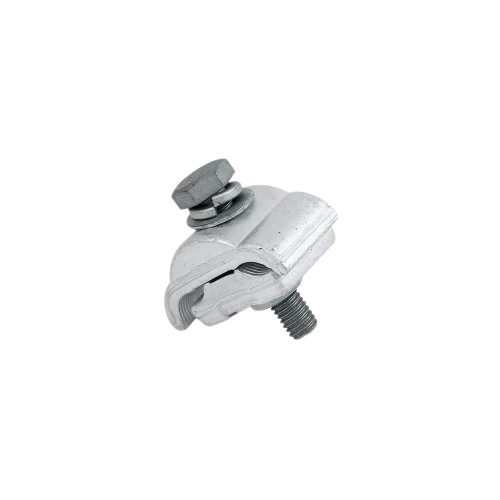

APG Aluminum PG Clamp

Structure Feature
1.Select high strength,corrosion-resistant,aluminum 99.5%.
2.Teeth-shape structure,touch with lowly resistance,reliable splicing.
3.All parts connected with each other,it will not easy lose parts during installation.
4.An are embrace the most part,create better electric contact.

Add to Quote

Share us on:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on skype
Share on telegram
Share on xing
Share on whatsapp
Share on email
Share on print

Description

Specification:


Type

Conductor Cross-section(mm²)

Bolt

Electrical fittings manufacturer and exporter-FINA-CHINA

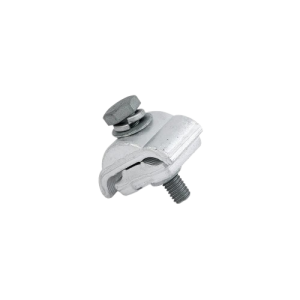

APG-A1

AL16-70

1*M8*40

APG-A2

AL16-150

1*M8*45

Electrical fittings manufacturer and exporter-FINA-CHINA

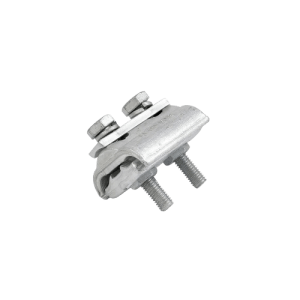

APG-B1

AL16-35

2*M6*35

APG-B2

AL16-70

2*M8*45

APG-B3

AL25-150

2*M8*50

APG-B4

AL25-240

2*M10*60

APG-B5

AL35-300

2*M10*70

Electrical fittings manufacturer and exporter-FINA-CHINA

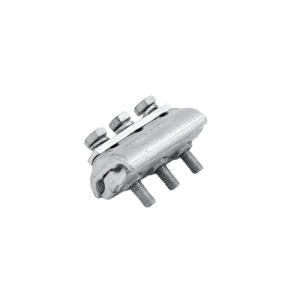

APG-C1

AL16-70

3*M8*45

APG-C2

AL25-150

3*M8*50

APG-C3

AL25-240

3*M10*60

APG-C4

AL35-300

3*M10*70
