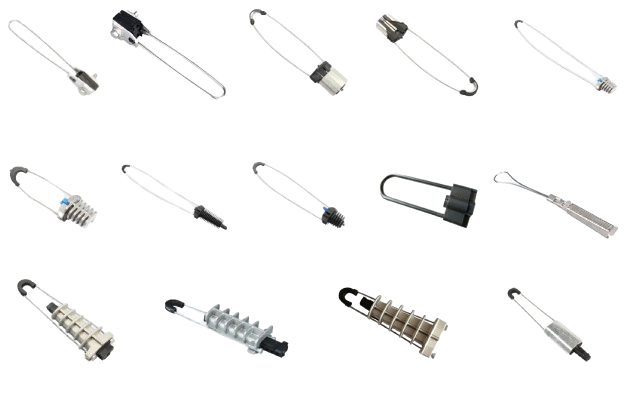

PA Series -Anchoring Clamp

Quote List

PA Series -Anchoring Clamp

Structure Feature
1.Reduced dimensions for easier handling.
2.High mechanical and climatic resistance.
3.Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath.
4.Standard:NF C 33-041

Add to Quote

Inquiry Now

Share us on:

Description

Description

Specificaiton:

Type	Conductor (mm²)	Messenger Diameter (mm)	Breaking Load (KN)
PA2-35	2 x (16-35)	3-6	6.5
PA4-35	2 x 16 – 4 x 35	3-6	8
AC-0-06	16-25	2-6	5
AC-0-07	16-35	3-7	6
AC-0-07-500	16-25	3-7	10
AC-0-07-501	16-25	3-7	10
AC-0-08	16-25	3-7	4
AC-0-05	16-25	3-6	3
AC-0-09	16-25	3-7	9
FN-D	6-16	1-3	15
PAL1000	16-35	2-7	10
PAL1500	50-70	11-14	15
PAL2000	70-95	14-16	15
JBG-1	25-70	8-14	10
JBG-2	70-120	14-17	15
